ALE Hydraulic Model Test Sand
Function:
ALE Hydraulic model test stand is designed for HF series push pull force gauge operation, manual operation.
Using large hydraulic jacks to realize big load force test, Simple and stable operation, it can be combined with
different fixtures in various combinations of different purposes compressive load test.

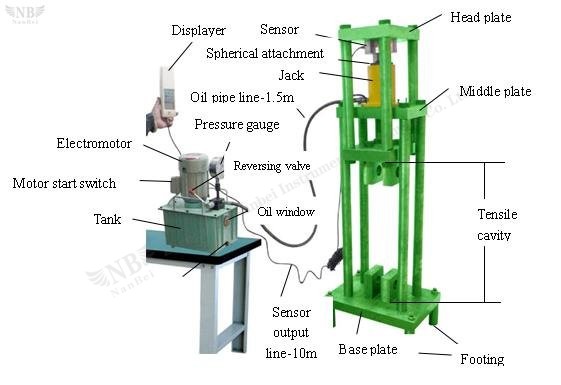

Structure schematic:
|
Max. load |
5k |
5T |
10T |
20T |
50T |
|
Compress chamber |
150mm |
240mm |
280mm |
245mm |
290mm |
|
Stretching chamber |
185mm |
120mm |
130mm |
165mm |
150mm |
|
Effective stroke |
90mm |
125mm |
125mm |
145mm |
160mm |
|
Dimensions |
190×140×880mm |
225×180×1000mm |
300×300×1185mm |
300×300×1220mm |
350×350×1410mm |
|
Net weight |
30kg |
41.6kg |
90.3kg |
98kg |
194kg |
