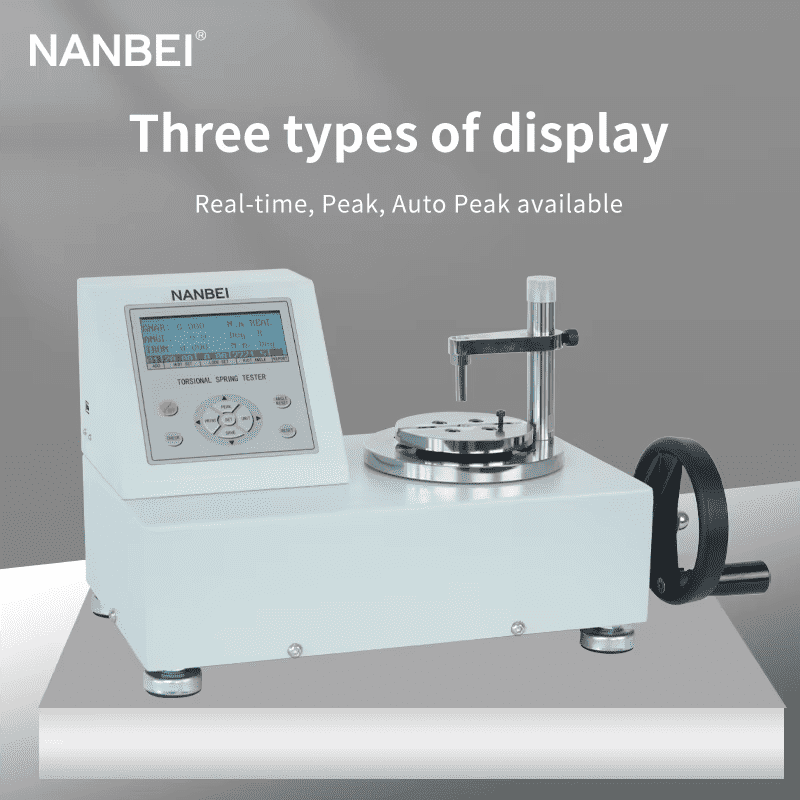

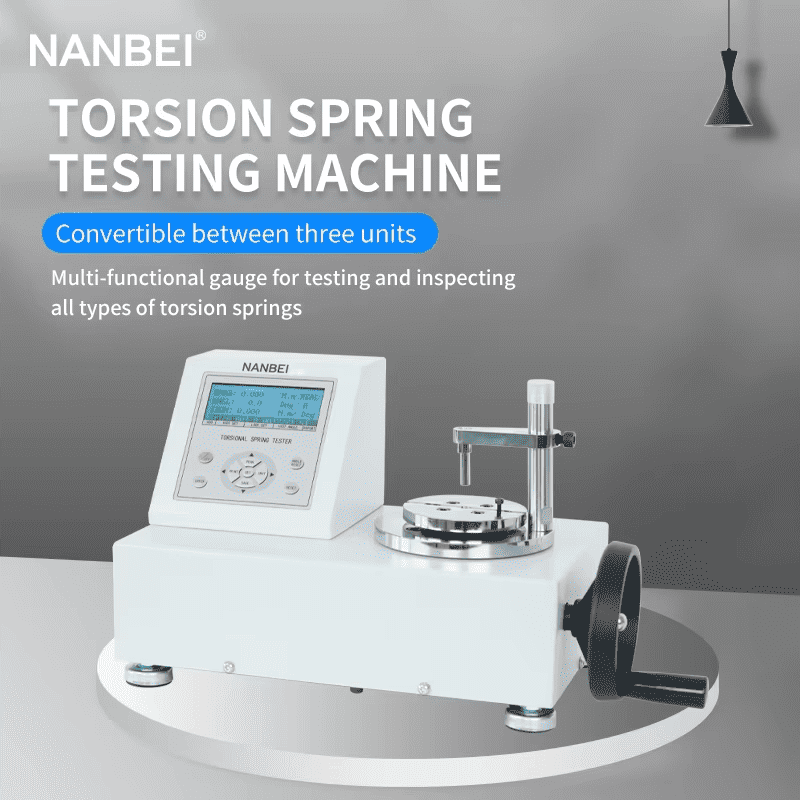

ANH series digital torsion spring tester is a kind of intelligent multi-functional measuring instrument used for testing and inspection of torsion spring. With simple operation, high precision, easy to carry, complete functions, widely used in all kinds of electric, light industry, machinery manufacturing, research institutions, etc.

Buttons Instruction for ANH Torsion Spring Tester

1. ON/OF button: can be used to start-up and shutdown.

2. Angle reset button: In real time measurement, press this button can revise angle zero.

3. View button: In the measurement interface, through this button can view the the storage measurement data.

4. Reset button: In real time measurement, press this button can revise torque zero; In the peak and automatic peak, press this button can remove peak, restore to zero; when in view interface, press this button, can remove the current storage measurements. Long press this button can remove all storage measurements. In the user set interface, press this button will not save data and returned to the next higher level interface.

5. Peak button: When in the measurement interface, used to switch real-time, peak, automatic peak three kinds of measurement model; In set interface it has up move function; In view interface, press this button can view the last data.

6. Save button: In the measurement interface,used to save the measurement data; in set interface, it has move down function; In view interface, press this button can view the next data.

7. Print button: in the measurement interface, press this button can print the store measured value(Except no printing function); In set interface, it has move left function.

8. Unit button: in the measurement interface, it used to switch N·m、kgf·cm、Ib·in three units; In set interface, it has move

right function.

9. Set button: in the measurement interface, users can through this button enter into settings menu, and press this button can save data when in setting data.
