Key Technical Parameters of Torque Wrench Calibrator

2026-01-19 15:53

The torque wrench calibrator is a specialized device for calibrating torque wrenches and torque screwdrivers. It is mainly used to test various constant torque wrenches, digital torque wrenches, preset torque wrenches, and other instruments and products.

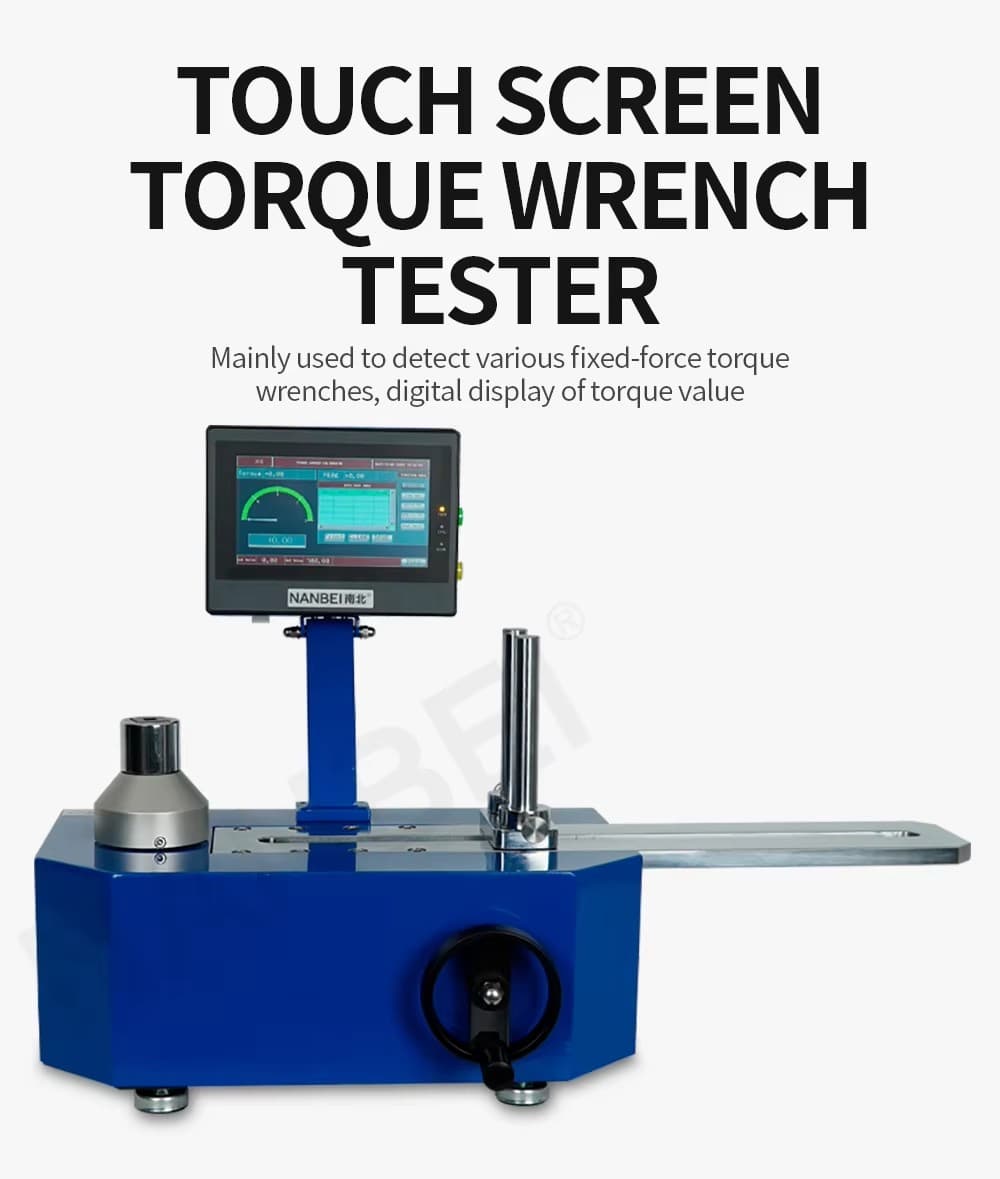

torque wrench calibration tester

Main technical parameters of torque wrench tester

Model		HBS-1000N	HBS-2000N	HBS-5000N
Peak measurement range	N.m	Range 1:1.00-10.00 Range 2: 10.0-100.0 Range 3:100-1000	Range 1:2.00-20.00 Range 2: 20.0-200.0 Range 3: 200-2000	Range 1:5.00-50.00 Range 2: 50.0-500.0 Range 3:500-5000
Measurement method		Tracking (TRACK), Peak Hold (PEAK)
Accuracy		±1.0%

Model	2HBS-500N	3HBS-1000N	3HBS-2000N	3HBS-5000N
Peak measurement range N.m	Range 1:5-50 Range 2:50-500	Range 1:1-10 Range 2:10-100 Range 3:100-1000	Range 1:2-20 Range 2:20-200 Range 3:200-2000	Range 1:5-50 Range 2:50-500 Range 3:500-5000
Measurement method	Tracking (TRACK), Peak Hold (PEAK)
Accuracy	±0.3%
Display mode	5-inch color touch LCD display
General functions	It supports software calibration, and can set the product number, date, time, overload alarm value and gravity acceleration, etc.

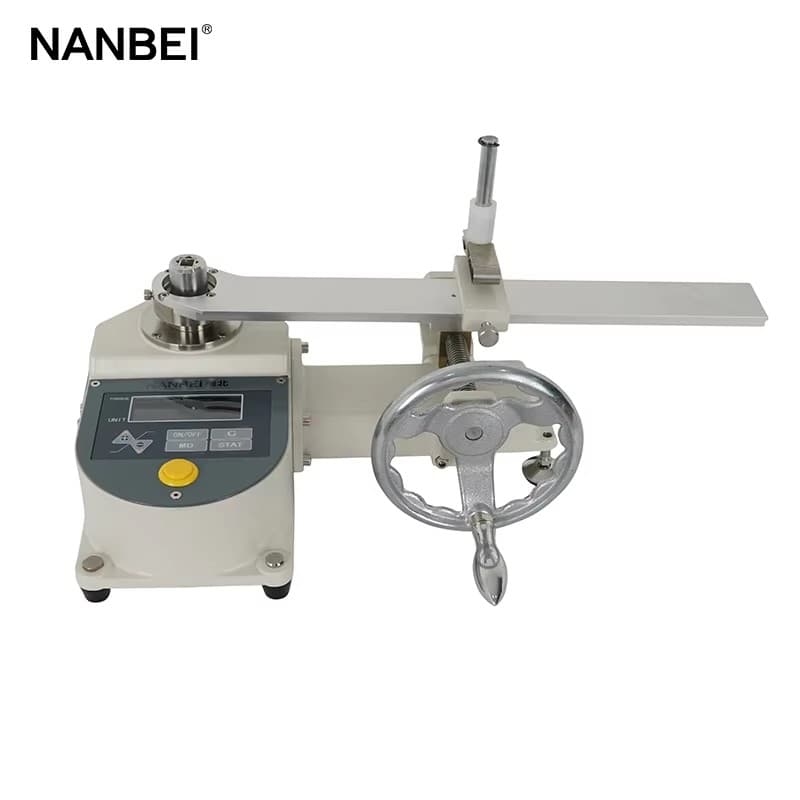

torque meter
