Tension meter refers to an instrument that measures the tightness of wires and strips, such as yarn, steel wire, copper wire, cable, steel cable, film, binding materials, aluminum foil and other materials under static or dynamic conditions. It can provide accurate and quantitative tightness parameters for the production process to ensure that the tension remains stable or reaches the required value during the production process.

Common types of tension meters:

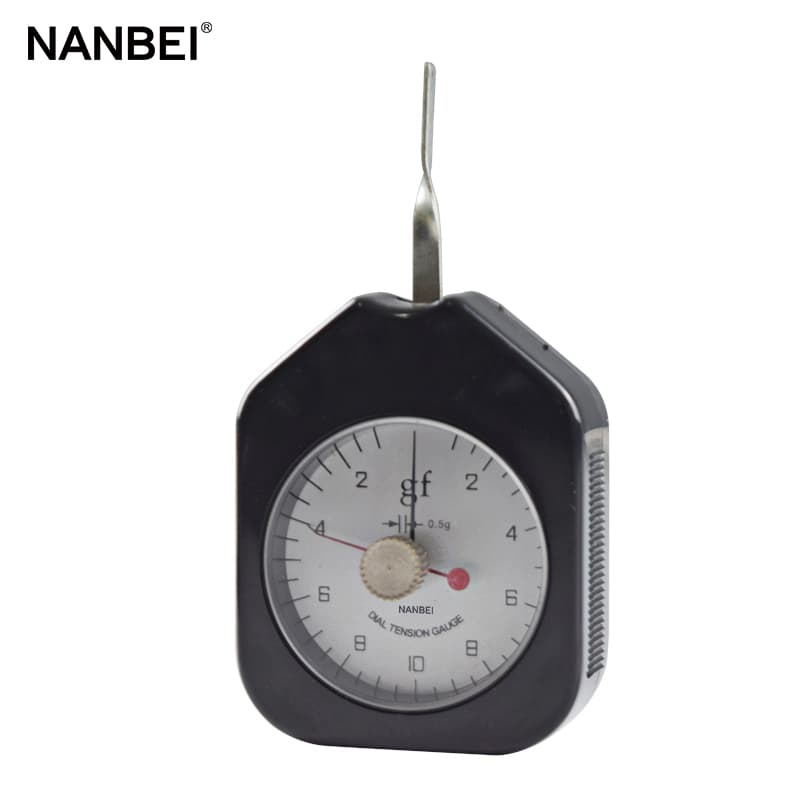

1. Yarn tension mete: it measures the tension of textile materials such as yarn, chemical fiber filament, spandex, etc., in unit cN, and mainly used in spinning and weaving industries, such as knitting.

2. Steel wire tension meter: It measures the tension of steel wire ropes, steel wires and other highly rigid metal wires. It is mainly used in wire drawing factories, tire manufacturers, etc., and the unit is N.

3. Paper-making web tension mete: It measures the tension of paper-making webs. Because paper-making webs are generally polyester webs, it is also called polyester web tension mete. It is mainly used in the paper-making industry. It can also measure the tension of cloth and is mainly used in printing and dyeing industry.

4. Belt tension meter: It measures the tension value of various types of belts and applied to the detection of engine belt tension, and the unit is N.

Tensiometers, like all other instruments, will have certain errors and measurement ranges even if the instrument is highly accurate. Usually the actual maximum tension used is 80% of the tensiometer's range. When selecting a tensiometer, try to make the diameter of the material being measured the same as or close to the effective diameter of the tensiometer.
