ASC Side Shake Screw Test Stand

ASC Side Shake Screw Test Stand

Brand:NANBEI
Model:ASC Side Shake Screw Test Stand
Application:Testing machine dedicated to spring tension and compression...
Product Details

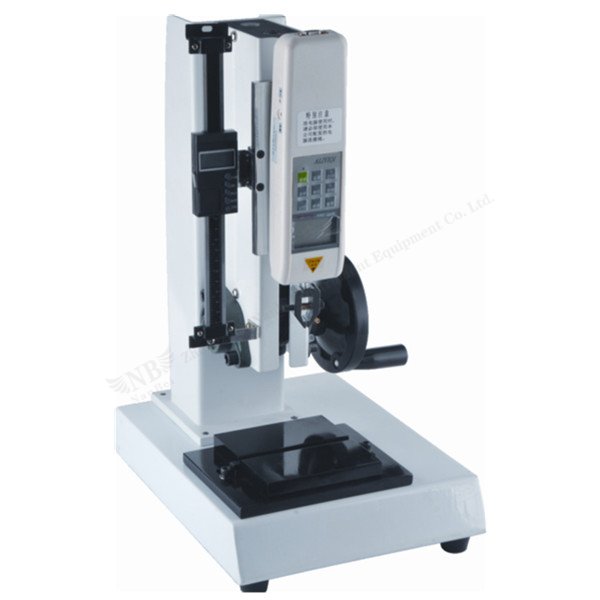

NANBEI ASC Side Shake Screw Test Stand

 Features

1:The machine stand base is large and stable, which is suitable for indoor testing on the desktop.

2:It is driven by the screw, and its gauge head displacement is accurate,

   With the side hand wheel loading, and the simple and stable operation.

3:The mobile platform of the base owning the standard layout can realize left, right,

   Forward and backward movement, with convenient and accurate clamping.

4:The machine stand can be installed in the table (desk) to use, having more solid machine frame.

5:It is equipped with digital gauge, which enables it to collect the stroke data collection whenever necessary(ASC-S).

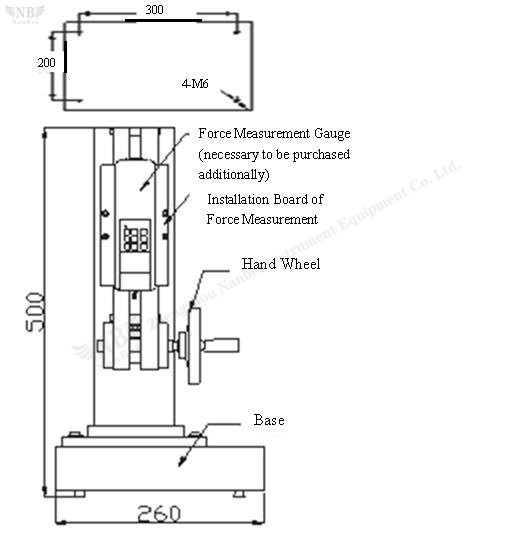

Diagram of Structure

Specifications and Parameters



Model
ASC-500
ASC-1000
Max load
500N
1000N
effective travel
180mm
180mm
Dimension
260*360*500mm/260*360*700mm
Weight
18kg
19kg



Other models we can supply as follows:

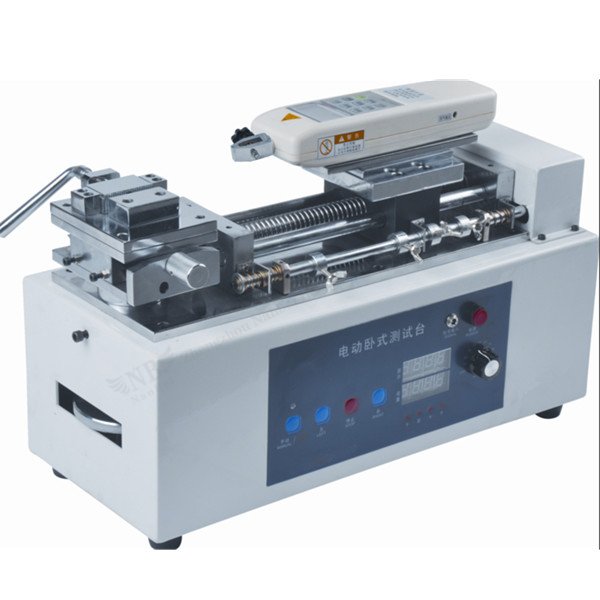

AEH Electric Horizontal
Test Stand

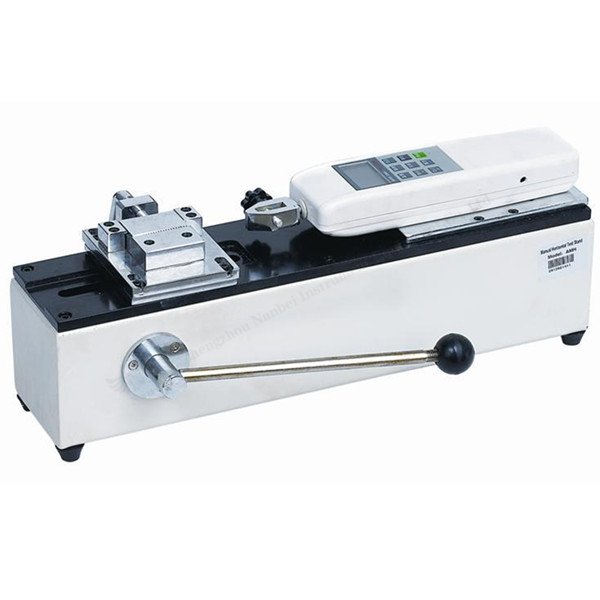

AMH Manual Horizontal
Test Stand

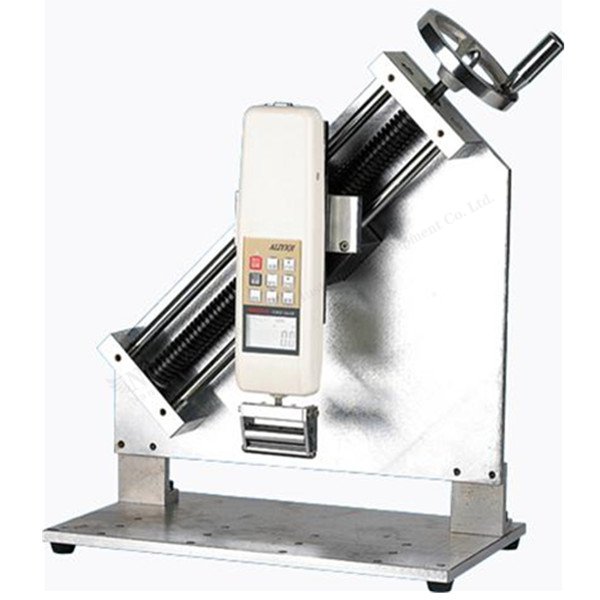

ABL Peel-off Force
Test Stand






AEV Electric Double Column
Vertical Test Stand
ASC Side Shake Screw
Test Stand

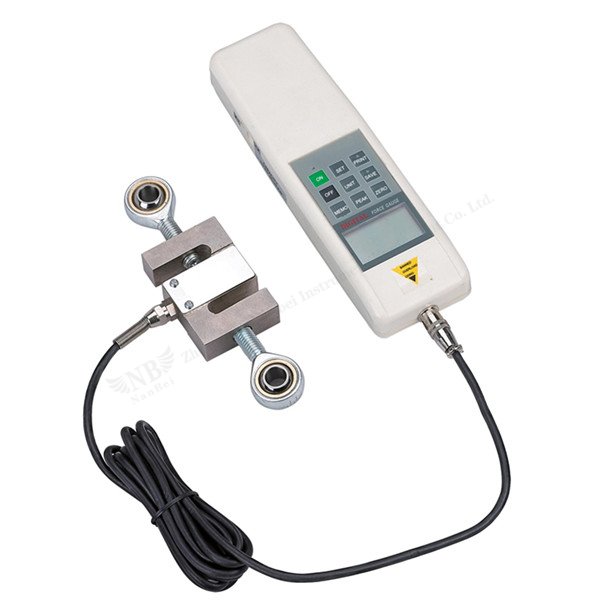

HF digital force gauge




Please feel free contact us if you have any question about our product.
