ANQ Analog Torque Driver

ANQ Analog Torque Driver

Brand:NANBEI
Model:ANQ Analog Torque Driver
Application:Physical test instrument......
Product Details

ANQ Analog Torque Driver

Function of torque driver:

Dial Torque Driver is use for cars, autobike, machine, electronic and so on.
It is use for the torque of parts, easy to handle, easy to use, can keep long time.
It is a necessary tool to test the torque of maintain and check equipment set.



Products dimension:
Long: 270(mm)       Wide: 98(mm)       High: 100(mm)


Model of torque driver:

Model

Capacity(N·m)

Accurate(%)

Long(mm)

ANQ-0.6

0.1-0.6



5%



270

ANQ-1.2

0.2-1.2

ANQ-3

0.25-3

ANQ-6

0.5-6

ANQ-9

0.75-9





ANQ-12

1-12

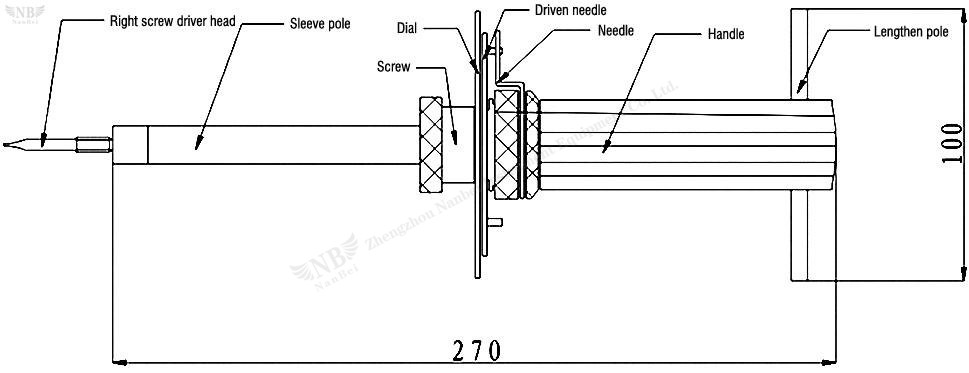

Schematic drawing



Use method:

1. Before use, please zero to ensure the accuracy.

2. During use, this product must be keep vertical condition with the testing object; otherwise

    will reduce the accuracy and the service life of torque meter.
3. After use, please zero, facilitates the later use.
4. When zero, loosens the locknut on the torque, turns the dial, causes the indicator at zero position,

   and then tightens the locknut.



Attention:

1:This products can’t use as tool

2:This products have been calibrate, not need to open the back cover, or loose the screw, it will make error. 3:Don’t put the products with ache, alkali and other causticity things together.
