ATN Instruction Manual Tension Meter

ATN Instruction Manual Tension Meter

Model:ATN Instruction Manual Tension Meter
Application:Mainly used for measurement of cables, fibers and wires....
Product Details
ATN Instruction Manual Tension Meter

Product description
First, function:

Tensiometers are suitable for contact pressures such as relay contact pressure, electronic switches, microswitches, valves, spring tensions, spindle pressures of dial gauges, automatic telephone equipment contacts and armature pressures, tape recorder buffer pressures, and others.Precision pressure, pull test.

Second, special features:
1, easy to use;
2, the appearance of fine;
3, when testing, as long as the stylus to pull the need to test the object, so that it can be moved from the rest position to the desired position.The tension meter can be tested either clockwise or counterclockwise, but the stylus arm must always be perpendicular to the direction of the push-pull force;
4, tension scoring single needle and double needle.After the double needle tension meter measures the highest value, the slave needle stops moving, which facilitates the tester to read the measured value.

Third, the specification parameters:

Model specifications ATN-0.05 ATN-0.1 ATN-0.3 ATN-0.5 ATN-1 ATN-1.5 ATN-3 ATN-5
Maximum measurement 0.05N 0.1N 0.3N 0.5N 1N 1.5N 3N 5N
Dividing value 0.002N 0.005N 0.01N 0.02N 0.05N 0.05N 0.1N 0.2N
Scale style 0.01-0.05-0.01N 0.02-0.1-0.02N 0.06-0.3-0.06N 0.1-0.5-0.1N 0.2-1-0.2N 0.3-1.5-0.3N 0.6-3-0.6N 1-5-1N

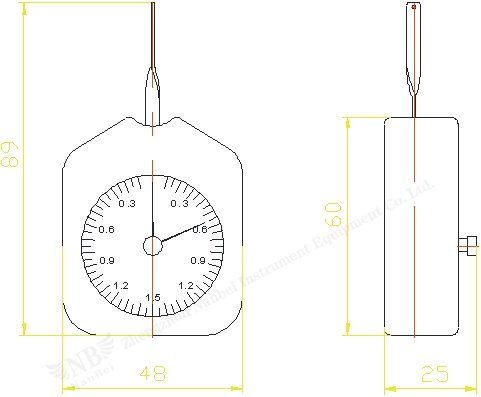

Fourth, the structure diagram:
