NK/NLB/ALB Analog Force Gauge

NK/NLB/ALB Analog Force Gauge

Brand:NANBEI
Model:NK/NLB/ALB Analog Force Gauge
Application:Testing machine dedicated to spring tension and compression...
Product Details

NANBEI NK/NLB/ALB Analog Force Gauge


Product Description:

The NK, NLB, ALB series are dial force gauge with compact size and high accuracy.

They are easy to operate and handy to carry out. Widely applied in rubber plastic, light industry, textile,

building windows and doors, compound materials, electric wire and cable, auto part, power generator,

scientific research institute to do the push pull force insertion force and destructive experiment.



Character:

1.With easy operate and can be installed with all kinds of test stand and clamp.

2.Peak holding function and continuous.

3.One year free maintenance.

4.Compact and artistic packing, easy to transit andstock.

5.Two kind of unit dual show at the same time,don't need unit conversion.

6.NK Series: Newton and Kilogram dual unit;

NLB Series: Newton and Pound dual unit;

ALB: Pound and Kilogram dual unit.

Needle indicates, easy to read, high accuracy



Technical Data:

Model
NK-20
NK-30
NK-50
NK-100
NK-200
NK-300
NK-500
Max load
20N
2kg
30N
3kg
50N
5kg
100N
10kg
200N
20kg
300N
30kg
500N
50kg
Min load
2N
0.2kg
3N
0.3kg
5N
0.5kg
10N
1kg
20N
2kg
30N
3kg
50N
5kg
Load graduation value
0.1N
20g
0.2N
20g
0.25N
50g
0.5N
100g
1.0N
200g
2.0N
200g
2.5N
500g
Rod journey
10mm
Work temperature
20°土10℃
Carry temperature
-27℃~+70℃
Relative humidity
15%~80%RH
Work environment
No vibrancy and no cautery

Model
ALB-4
ALB-10
ALB-20
ALB-40
ALB-100
Max load
4.5Ib
2kg
11Ib
5kg
22Ib
10kg
45Ib
20kg
110Ib
50kg
Min load
0.45Ib
0.2kg
1Ib
0.5kg
2.2Ib
1.1kg
4.5Ib
2.2kg
11Ib
5.5kg
Load graduation value
0.02Ib
0.02kg
0.05Ib
0.05kg
0.1Ib
0.1kg
0.2Ib
0.2kg
0.5Ib
0.5kg
Rod journey
10mm
Work temperature
20°+-10℃
Carry temperature
-27℃~+70℃
Relative humidity
15%~80%RH
Work environment
No vibrancy and no cautery




Model
NLB-20
NLB-30
NLB-50
NLB-100
NLB-200
NLB-300
NLB-500
Max load
20N
4.4Ib
30N
6.6Ib
50N
11Ib
100N
22Ib
200N
44Ib
300N
66Ib
500N
110Ib
Min load
2N
0.4Ib
3N
0.6Ib
5N
1Ib
10N
2Ib
20N
4Ib
30N
6Ib
50N
10Ib
Load graduation value
0.1N
0.04Ib
0.2N
0.04Ib
0.25N
0.1Ib
0.5N
0.2Ib
1.0N
0.4Ib
2.0N
0.4Ib
2.5N
1.0Ib
Rod journey
10mm
Work temperature
20°+-10℃
Carry temperature
-27℃~+70℃
Relative humidity
15%~80%RH
Work environment
No vibrancy and no cautery



More pictures:

Other product we can supply as follows:

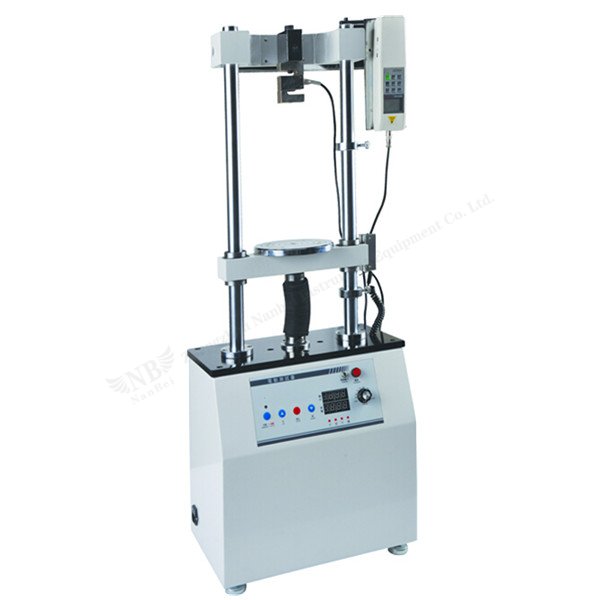

AEV Electric Double Column
Vertical Test Stand
ASC Side Shake Screw
Testtand

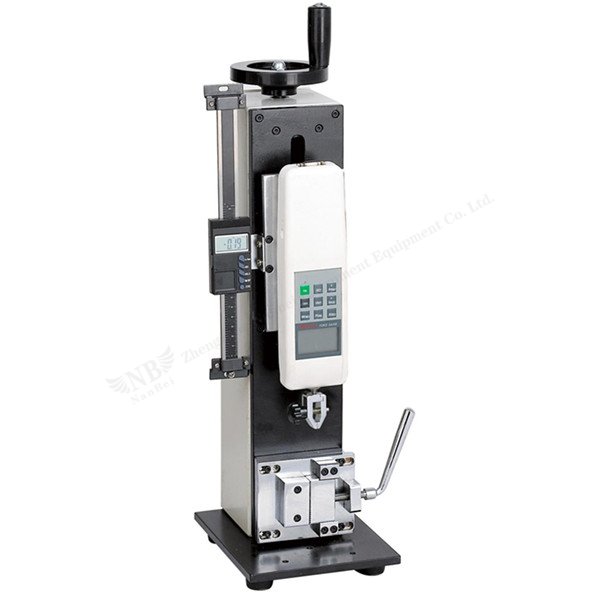

ASL Manual Vertical
(Horizontal) Dual Test Stand

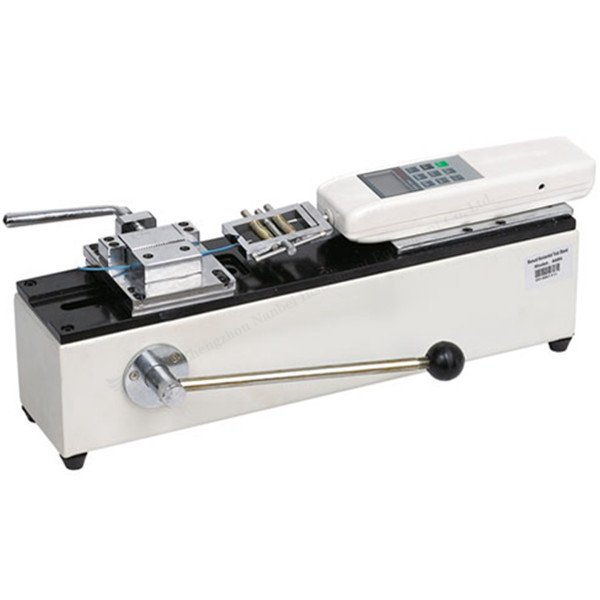

ADL Terminal Pulling Force
Tester
ABQ Button Tester

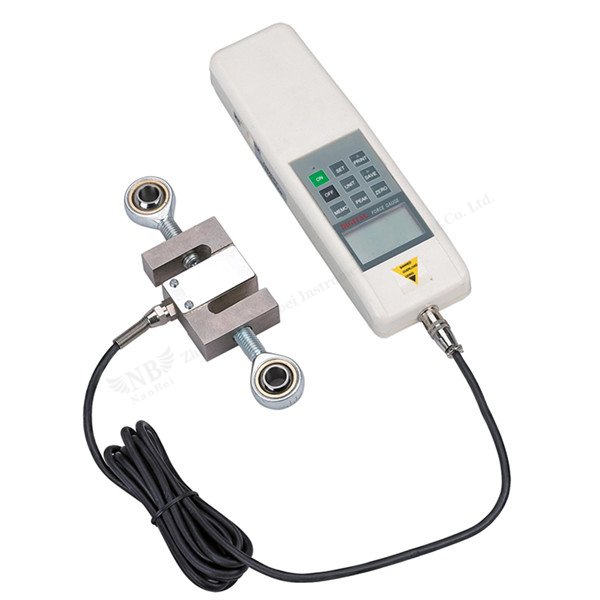

HF Digital force gaguge






We do not just sell good quality equipment,we pay more attention to provide users with good after-service!
Please feel free contact me if you have any question!
